AUTOMATIC ROBOTIC PLOTTING & LINE MARKING

Complete & fast plotting Solutions

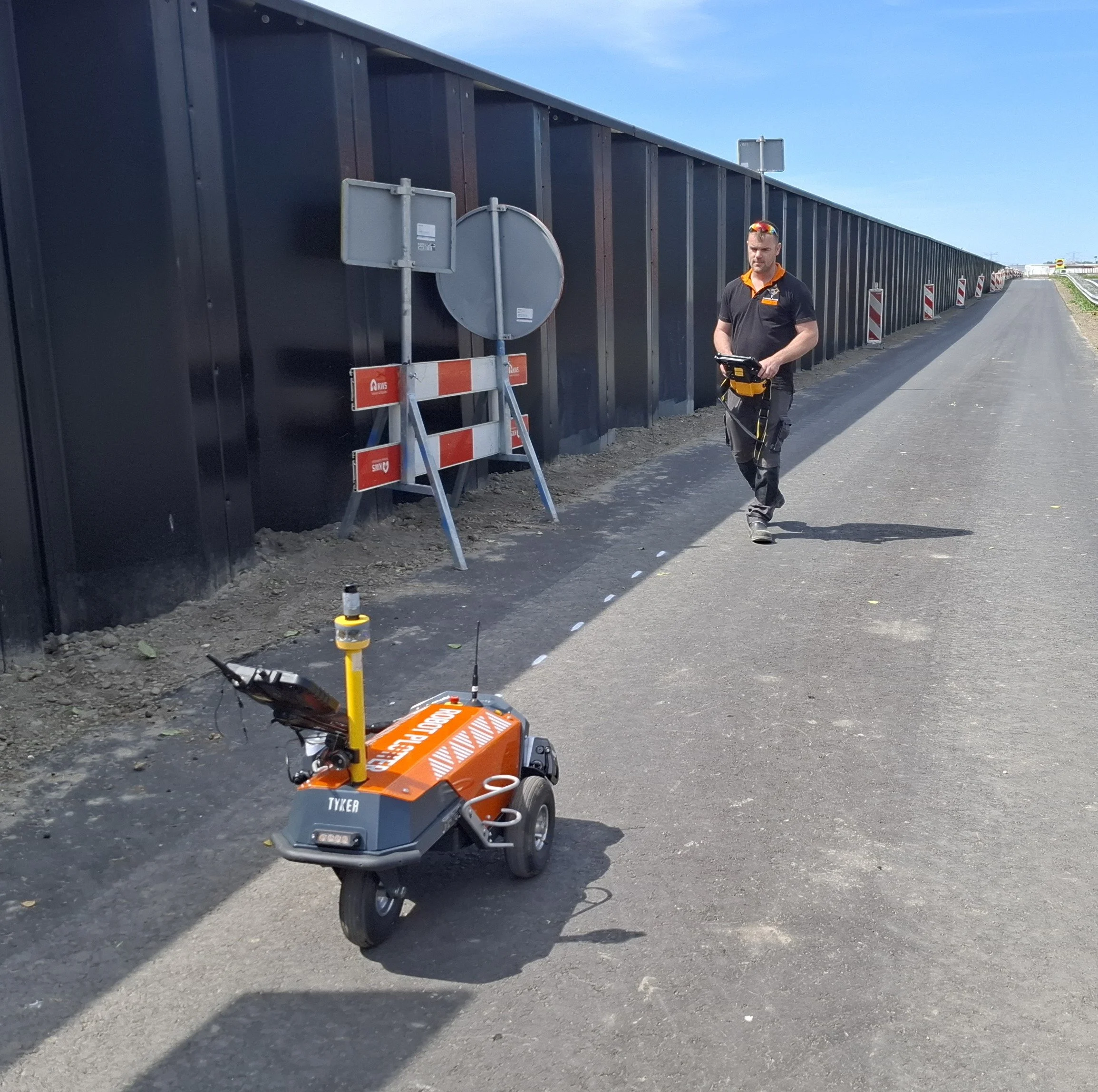

tyker robotic plotter

his clever machine takes your project design and marks points and lines directly onto the site, helping turn plans into clear, visible set-out. It can work from DXF linework and CSV point files, marking layouts across surfaces such as concrete, asphalt, gravel, sand and grass.

More set-out in less time. Tyker reports that, for suitable marking tasks, the Robot Plotter can take 12–16 times less time than traditional marking with a 3–4 person crew. That can mean fewer labour hours spent marking out and real cost savings for your project.

From roads and car parks to paths, services and foundations, clear on-ground markings help crews see what goes where and keep work moving. It’s a modern way to bring design information out of the screen and onto the site.

Whether you’re a contractor, local business, shire or government project team, Metric Surveying can help you put your plans into action with our Tyker Robot Plotter and experienced surveying support.

Have a project coming up? Get in touch with Metric Surveying and let’s get your design on the ground.

works with all Design File types

Accurate Linework and plotting data is critical to an efficient project. We offer tailored support with:

✔ Road works line marking

✔ Detailed setout tailord to the projects needs

✔ Updates to accommodate design changes during the project lifecycle

Our goal is to ensure your Project is operating from the correct data set, consistently and with confidence.
